Heavy Duty Electric Hydraulic Scissor Lift Tables – A Buyers Guide

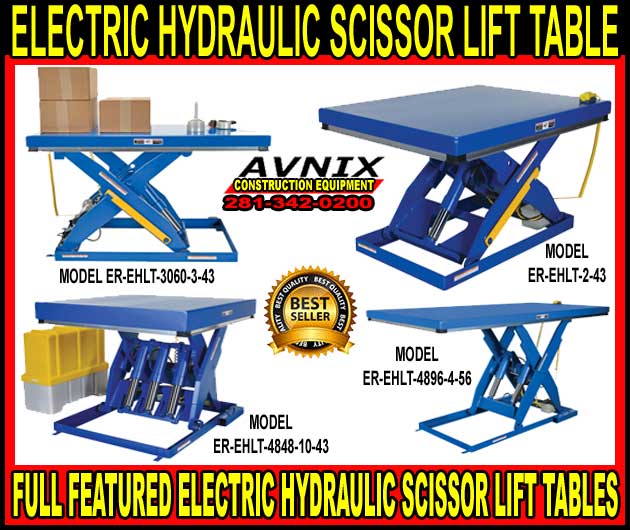

Electric Hydraulic Scissor Lift Tables – For Free Quote Call 281-342-0200
Powered Scissor Lift Table – For FREE Quote Call 281-342-0200

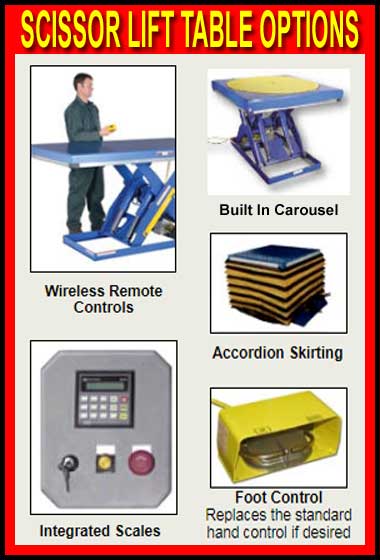

Scissor Lift Table Options – FREE Quote 281-342-0200
Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities.
Safety Benefits Include:
1. Electric toe guard to protect pinch points during lowering of the table.
2. internal safety velocity fuse to maintain platform height in event of hose or fitting failure,
3. 24V AC pushbutton hand control
4. Maintenance prop, and upper travel limit switch to stop table at maximum height.
5. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor standard, other voltages available.
6. 3000 psi hydraulic component rating
| Quick Ship Electric Hydraulic Scissor Lift Tables – 460V 3 Phase Standard | |||||||
| Model | Platform Size (WxL) |
Capacity (lbs) |
Raised Height |
Lowered Height |
Voltage/ Phase |
Wt. (lbs) |
|
| ER-EHLT-2448-3-43-QS | 24″x48″ | 3,000 | 43″ | 7″ | 460/3 | 694 | |
| ER-EHLT-3060-3-43-QS | 30″x60″ | 3,000 | 43″ | 7″ | 460/3 | 753 | |
| ER-EHLT-4048-3-43-QS | 40″x48″ | 3,000 | 43″ | 7″ | 460/3 | 807 | |
| ER-EHLT-4848-3-43-QS | 48″x48″ | 3,000 | 43″ | 7″ | 460/3 | 841 | |
| ER-EHLT-4872-3-43-QS | 48″x72″ | 3,000 | 43″ | 7″ | 460/3 | 950 | |
| ER-EHLT-3060-4-43-QS | 30″x60″ | 4,000 | 43″ | 7″ | 460/3 | 788 | |
| ER-EHLT-4048-4-43-QS | 40″x48″ | 4,000 | 43″ | 7″ | 460/3 | 878 | |
| ER-EHLT-4848-4-43-QS | 48″x48″ | 4,000 | 43″ | 7″ | 460/3 | 918 | |
| ER-EHLT-4872-4-43-QS | 48″x72″ | 4,000 | 43″ | 7″ | 460/3 | 963 | |
*Contact Factory if platform dimensions are crucial**
Scissor Lift Table Model Number Format
EHLT – (width)(length) – capacity – raised height
| Vertical Travel |
Platform Width |
Platform Length |
Capacity (lbs.) |
Raised Height |
Lowered Height |
Travel Time (sec.) |
Wt. (lbs.) |
| 36″ | 24″-48″ | 48″-72″ | 1,000 | 43″ | 7″ | 7 | 638 |
| 36″ | 24″-48″ | 48″-72″ | 2,000 | 43″ | 7″ | 11 | 738 |
| 36″ | 24″-48″ | 48″-72″ | 3,000 | 43″ | 7″ | 16 | 950 |
| 36″ | 24″-48″ | 48″-72″ | 4,000 | 43″ | 7″ | 22 | 980 |
| 36″ | 36″-48″ | 48″-72″ | 5,000 | 44″ | 8″ | 32 | 1029 |
| 36″ | 36″-48″ | 48″-72″ | 6,000 | 44″ | 8″ | 32 | 1108 |
| 36″ | 36″-48″ | 48″-72″ | *8,000 | 44″ | 8″ | 15 | 1281 |
| 33″ | 40″-60″ | 48″-72″ | *10,000 | 43″ | 10“ | 15 | 1438 |
| 33″ | 40″-60″ | 48″-72″ | *12,000 | 43″ | 10″ | 15 | 1596 |
| 48″ | 24″-48″ | 64″-90″ | 1,000 | 55″ | 7″ | 11 | 755 |
| 48″ | 24″-48″ | 64″-90″ | 2,000 | 55″ | 7″ | 16 | 1176 |
| 48″ | 24″-48″ | 64″-90″ | 3,000 | 55″ | 7″ | 22 | 1250 |
| 48″ | 36″-48″ | 64″-96″ | 4,000 | 56″ | 8″ | 32 | 1271 |
| 48″ | 36″-48″ | 64″-96″ | 5,000 | 56″ | 8″ | 32 | 1339 |
| 48″ | 36″-48″ | 64″-96″ | 6,000 | 56″ | 8″ | 48 | 1420 |
| 48″ | 36″-48″ | 64″-96″ | *8,000 | 56″ | 8″ | 15 | 1574 |
| 45″ | 40″-60″ | 64″-96″ | *10,000 | 55″ | 10″ | 15 | 1659 |
| 45″ | 40″-60″ | 64″-96″ | *12,000 | 55″ | 10″ | 20 | 1816 |
| 60″ | 24″-48″ | 84″-108″ | 1,000 | 67″ | 7″ | 16 | 1303 |
| 60″ | 24″-48″ | 84″-108″ | 2,000 | 67″ | 7″ | 14 | 1313 |
| 60″ | 24″-48″ | 84″-108″ | 3,000 | 67″ | 7″ | 16 | 1456 |
| 60″ | 48″-72″ | 96″-120″ | *4,000 | 68″ | 8″ | 26 | 1848 |
| 60″ | 48″-72″ | 96″-120″ | *5,000 | 68″ | 8″ | 26 | 1890 |
| 60″ | 48″-72″ | 96″-120″ | *6,000 | 70″ | 10″ | 30 | 1890 |
| 60″ | 62“-72” | 96″-120″ | *8,000 | 70″ | 10″ | 30 | 3000 |
| 58“ | 62“-72” | 96″-120″ | *10,000 | 72″ | 14″ | 30 | 3498 |
| 58“ | 62“-72” | 96″-120″ | *12,000 | 72″ | 14″ | 30 | 3510 |
| 72″ | 24″-48″ | 102″-120″ | 1,000 | 79″ | 7″ | 12 | 2047 |
| 72″ | 24″-48″ | 102″-120″ | 2,000 | 79″ | 7″ | 16 | 2060 |
| 71″ | 48″-72″ | 120″-144″ | *3,000 | 82″ | 11″ | 16 | 2089 |
| 71″ | 48″-72″ | 120″-144″ | *4,000 | 82″ | 11″ | 26 | 3217 |
| 71″ | 48″-72″ | 120″-144″ | *5,000 | 82″ | 11″ | 26 | 3675 |
| 70″ | 62“-72” | 120″-144″ | *6,000 | 82″ | 12″ | 30 | 3773 |
| 70″ | 62″-72″ | 120″-144″ | *8,000 | 82″ | 12″ | 30 | 4007 |
DENOTES 6.5 HP 208-230/460V 3PHASE (EXTERNALLY MOUNTED) OTHER SIZES AVAILABLE
IMPORTANT NOTES, WARNINGS AND SAFETY INSTRUCTIONS
Ensure that all employees understand and follow the following:
Note* Failure to read and understand this owner’s manual before using or
servicing the scissor lift constitutes a misuse of the product. All persons
who will install, use, or care for this product must be familiar with this
information.
- Non-portable units must be securely anchored to a level concrete surface.
- The scissor lift is intended for use only on level, concrete surfaces.
- The lift’s load must be centered and evenly distributed on the platform.
- The platform should be lowered before transporting any loads (PST only).
- The load must be removed and the platform fully lowered before any work
- is performed on the scissor lift.
- Do not use the scissor lift if any damage or unusual noise is observed.
- Always watch the load carefully when the scissor lift is in operation.
- Ensure that all information/ safety/warning labels remain in place and are legible. See the labels page.
- For battery-powered units, review the Battery Info page
- Do not use brake fluid or jack oils in the hydraulic system. If oil is needed, use an anti-wear hydraulic oil with a viscosity grade of 150 SUS at 100°F, (ISO 32 cSt @ 40°C), or Dexron transmission fluid.
- Contact the manufacturer for any needed MSDS information.
- Do not perform any modifications to the scissor lift without the anufacturer’s approval. Failure to receive authorization for changes to the equipment could void the warranty.
- Maintenance and repairs are to be done only by personnel qualified to perform the required work. Consideration will not be given for warranty repair charges without prior written authorization by the manufacturer.
