Portable Overhead Jib Crane For Sale – Made In USA
Overhead Jib Crane For Sale – FREE Quote 281-342-0200
Portable Overhead Jib Cranes are able to lift and maneuver heavy objects anyplace in the warehouse or outside situation can make your job much easier for your personnel, and by investing in one of the best time and work saving device feasible from Avnix, Employees will be able to increase production by making sure that workers are able to get the job completed efficiently while saving you capital in the long run.

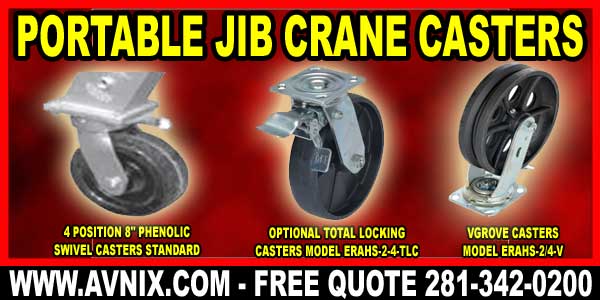

(4) 8″ Phenolic casters on the 6,000 and 8,000 lb. capacity units and steel casters on the 10,000 lb capacity FHS and AHS models
(4) 8″ Glass filled swivel casters with four-position locks on the 500, 2,000 and 4,000 lb. capacity models
One spot where every work space can make improvement is in the capability for personnel to be able to transport large heavy items within a small area, and then be able to move on. The best answer to this need is a portable jib crane, which can be positioned into place using a forklift and left, while an forklift driver carries out the task required before it is moved onto the next location where it is needed.
Portable overhead jib cranes mean that a single individual is able to move a moderately large amount of material within a limited area quite rapidly without having to tie up costly assets such as a forklift truck for long periods of time.
Portable Overhead Jib Crane Features:
-
- Rapid setup design.
- Optional lever handle for easy one man height adjustment.
- Height is adjustable in 6″ increments
- Hoist and trolley attachment can be ordered individually.
- Blue finish with warning and operating stickers and complete owner’s manual.
- Designed for semi-permanent or permanent applications
- (4) 8″ Glass filled swivel casters with four-position locks on the 500, 2,000 and 4,000 lb. capacity models.
- (4) 8″ Phenolic casters on the 6,000 and 8,000 lb. capacity units and steel casters on the 10,000 lb capacity FHS and AHS models.
*Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Overhead Jib Crane For Sale – FREE Quote 281-342-0200
Fixed Height Steel Jib Cranes | ||||||||
Model | Overall I-Beam Length | Overall I-Beam Height | Under I-Beam To Ground | Base Width | I-Beam Flange Width | Capacity (lbs) | Weight (lbs) | |
ERFHS-50 | 8′ | 6″ | 5’9″ | 46-1/2″ | 4″ | 500 | 512 | |
ERFHS-2-10 | 10′ | 6″ | 10′ | 64-1/2″ | 4″ | 2,000 | 739 | |
ERFHS-2-15 | 15′ | 6″ | 10′ | 64-1/2″ | 4″ | 2,000 | 801 | |
ERFHS-2-20 | 20′ | 10-1/8″ | 10′ | 64-1/2″ | 4″ | 2,000 | 994 | |
ERFHS-4-10 | 10′ | 8-1/8″ | 10′ | 64-1/2″ | 4″ | 4,000 | 771 | |
ERFHS-4-15 | 15′ | 8-1/8″ | 10′ | 64-1/2″ | 4″ | 4,000 | 846 | |
ERFHS-4-20 | 20′ | 12-3/16″ | 10′ | 64-1/2″ | 4″ | 4,000 | 1006 | |
ERFHS-6-10 | 10′ | 8-1/8″ | 10’1″ | 65-1/2″ | 4″ | 6,000 | 775 | |
ERFHS-6-15 | 15′ | 10-1/8″ | 10’1″ | 65-1/2″ | 4″ | 6,000 | 963 | |
ERFHS-6-20 | 20′ | 12-5/16″ | 10’1″ | 65-1/2″ | 6-1/2″ | 6,000 | 1355 | |
ERFHS-8-10 | 10′ | 8-1/8″ | 10’1″ | 64-1/4″ | 4″ | 8,000 | 855 | |
ERFHS-8-15 | 15′ | 10-1/8″ | 10’1″ | 64-1/4″ | 4″ | 8,000 | 956 | |
ERFHS-8-20 | 20′ | 12-5/16″ | 10’1″ | 64-1/4″ | 6-1/2″ | 8,000 | 1385 | |
ERFHS-10-10 | 10′ | 10″ | 10′ | 64-1/2″ | 4″ | 10,000 | 1093 | |
ERFHS-10-15 | 15′ | 10″ | 10′ | 64-1/2″ | 4″ | 10,000 | 1428 | |
Fixed Height Steel Jib Crane Options | ||||||||
Model | Description | |||||||
ERFHS-STLO | STATIONARY LEG OPTION, set of 4 (factory installed) | |||||||
ERFHS-STLO-RF | STATIONARY LEG OPTION, set of 4 (field installed) |
Adjustable Height Steel Jib Cranes | |||||||
Model | Overall I-Beam Length/ Height | Under I-Beam Usable Height | Base Width | I-Beam Flange Width | Capacity (lbs) | Wt. (lbs) | |
ERAHS-2-10-12 | 10′ /6″ | 7’6″to 12′ | 76-1/8″ | 4″ | 2,000 | 828 | |
ERERAHS-2-10-14 | 10′ /6″ | 8’6″to14′ | 88-1/2″ | 4″ | 2,000 | 898 | |
ERAHS-2-10-16 | 10/6″ | 10’6″to16′ | 88-1/2″ | 4″ | 2,000 | 930 | |
ERAHS-2-15-7 | 15′ /6″ | 5’to7′ | 46-3/8″ | 4″ | 2,000 | 716 | |
ERAHS-2-15-9 | 15′ /6″ | 6’to9′ | 58-3/8″ | 4″ | 2,000 | 774 | |
ERAHS-2-15-10 | 15′ /6″ | 6’6″to10′ | 64-1/4″ | 4″ | 2,000 | 778 | |
ERAHS-2-15-12 | 15′ /6″ | 7’6″to 12′ | 76-1/8″ | 4″ | 2,000 | 875 | |
ERAHS-2-15-14 | 15′ /6″ | 8’6″to14′ | 88-1/2″ | 4″ | 2,000 | 954 | |
ERAHS-2-15-16 | 15′ /6″ | 10’6″to16′ | 88-1/2″ | 4″ | 2,000 | 1020 | |
ERAHS-2-20-12 | 20′ /10-1/8″ | 7’6″to 12′ | 76-1/8″ | 4″ | 2,000 | 1074 | |
ERAHS-2-20-14 | 20′ /10-1/8″ | 8’6″to14′ | 88-1/2″ | 4″ | 2,000 | 1163 | |
ERAHS-2-20-16 | 20′ /10-1/8″ | 10’6″to16′ | 88-1/2″ | 4″ | 2,000 | 1194 | |
ERAHS-4-10-12 | 10′ /8-1/8″ | 7’6″to 12′ | 76-1/8″ | 4″ | 4,000 | 860 | |
ERAHS-4-10-14 | 10′ /8-1/8″ | 8’6″to14′ | 88-1/2″ | 4″ | 4,000 | 925 | |
ERAHS-4-10-16 | 10′ /8-1/8″ | 10’6″to16′ | 88-1/2″ | 4″ | 4,000 | 962 | |
ERAHS-4-15-7 | 15′ /8-1/8″ | 5’to7′ | 46-3/8″ | 4″ | 4,000 | 739 | |
ERAHS-4-15-9 | 15′ /8-1/8″ | 6’to9′ | 58-3/8″ | 4″ | 4,000 | 816 | |
ERAHS-4-15-10 | 15′ /8-1/8″ | 6’6″to10′ | 64-1/4″ | 4″ | 4,000 | 846 | |
ERAHS-4-15-12 | 15′ /8-1/8″ | 7’6″to 12′ | 76-1/8″ | 4″ | 4,000 | 930 | |
ERAHS-4-15-14 | 15′ /8-1/8″ | 8’6″to14′ | 88-1/2″ | 4″ | 4,000 | 1055 | |
ERAHS-4-15-16 | 15′ /8-1/8″ | 10’6″to16′ | 88-1/2″ | 4″ | 4,000 | 1068 | |
ERAHS-4-20-12 | 20′ /12-3/16″ | 7’6″to 12′ | 76-1/8″ | 4″ | 4,000 | 1076 | |
AHS-4-20-14 | 20′ /12-3/16″ | 8’6″to14′ | 88-1/2″ | 4″ | 4,000 | 1155 | |
ERAHS-4-20-16 | 20′ /12-3/16″ | 10’6″to16′ | 88-1/2″ | 4″ | 4,000 | 1204 | |
ERAHS-6-10-12 | 10′ /8-1/8″ | 7’7″to 12’1″ | 77-3/8″ | 4″ | 6,000 | 927 | |
AHS-6-10-14 | 10′ /8-1/8″ | 8’7″to14″1″ | 89-3/4″ | 4″ | 6,000 | 1045 | |
ERAHS-6-10-16 | 10′ /8-1/8″ | 10’7″to16’1″ | 89-3/4″ | 4″ | 6,000 | 1022 | |
ERAHS-6-15-7 | 15′ /10-1/8″ | 5’1″to7’1″ | 47-5/8″ | 4″ | 6,000 | 810 | |
ERAHS-6-15-9 | 15′ /10-1/8″ | 6’1″to9’1″ | 59-5/8″ | 4″ | 6,000 | 894 | |
ERAHS-6-15-10 | 15′ /10-1/8″ | 6’7″to10’1″ | 65-1/2″ | 4″ | 6,000 | 932 | |
ERAHS-6-15-12 | 15′ /10-1/8″ | 7’7″to 12’1″ | 77-3/8″ | 4″ | 6,000 | 1017 | |
AHS-6-15-14 | 15′ /10-1/8″ | 8’7″to14’1″ | 89-3/4″ | 4″ | 6,000 | 1108 | |
ERAHS-6-15-16 | 15′ /10-1/8″ | 10’7″to16’1″ | 89-3/4″ | 4″ | 6,000 | 1168 | |
ERAHS-6-20-12 | 20′ /12-5/16″ | 7’7″to 12’1″ | 77-3/8″ | 6-1/2″ | 6,000 | 1413 | |
ERAHS-6-20-14 | 20′ /12-5/16″ | 8’7″to14’1″ | 89-3/4″ | 6-1/2″ | 6,000 | 1513 | |
ERAHS-6-20-16 | 20′ /12-5/16″ | 10’7″to16’1″ | 89-3/4″ | 6-1/2″ | 6,000 | 1532 | |
ERAHS-8-10-12 | 10′ /8-1/8″ | 7’7″to 12’1″ | 76-1/8″ | 4″ | 8,000 | 933 | |
ERAHS-8-10-14 | 10′ /8-1/8″ | 8’7″to14’1″ | 88-1/2″ | 4″ | 8,000 | 1050 | |
ERAHS-8-10-16 | 10′ /8-1/8″ | 10’7″to16’1″ | 88-1/2″ | 4″ | 8,000 | 1121 | |
ERAHS-8-15-7 | 15′ /10-1/8″ | 5’1″to7’1″ | 46-3/8″ | 4″ | 8,000 | 804 | |
ERAHS-8-15-9 | 15′ /10-1/8″ | 6’1″to9’1″ | 58-3/8″ | 4″ | 8,000 | 905 | |
ERAHS-8-15-10 | 15′ /10-1/8″ | 6’7″to10’1″ | 64-1/4″ | 4″ | 8,000 | 960 | |
ERAHS-8-15-12 | 15′ /10-1/8″ | 7’7″to 12’1″ | 76-1/8″ | 4″ | 8,000 | 1044 | |
ERAHS-8-15-14 | 15′ /10-1/8″ | 8’7″to14’1″ | 88-1/2″ | 4″ | 8,000 | 1132 | |
ERAHS-8-15-16 | 15′ /10-1/8″ | 10’7″to16’1″ | 88-1/2″ | 4″ | 8,000 | 1194 | |
ERAHS-8-20-12 | 20′ /12-5/16″ | 7’7″to 12’1″ | 76-1/8″ | 6-1/2″ | 8,000 | 1406 | |
ERAHS-8-20-14 | 20′ /12-5/16″ | 8’7″to14’1″ | 88-1/2″ | 6-1/2″ | 8,000 | 1514 | |
ERAHS-8-20-16 | 20′ /12-5/16″ | 10’7″to16’1″ | 88-1/2″ | 6-1/2″ | 8,000 | 1582 | |
ERAHS-10-15-10 | 15′ /12-1/8″ | 6’6″to10′ | 64-1/2″ | 4″ | 10,000 | 1352 | |
Usable Distance Between Uprights is Overall Beam Length Minus 12″ |
|||||||
Steel Gantry Crane Options | |||||||
Model | Description | ||||||
ERAHS-2/4-TLC | Total Locking Casters (for 2,000 & 4,000 lb. capacity cranes only) (set of 4) | ||||||
ERAHS-6/8-TLC | Total Locking Casters (for 6,000 & 8,000 lb. capacity cranes only) (set of 4) | ||||||
ERAHS-2/4-V | 8″x2″ V-Groove Casters for 2,000 & 4,000 lbs. units (set of 4) | ||||||
ERAHS-6/8-V | 8″x3″ V-Groove Casters for 6,000 & 8,000 lbs. units (set of 4) | ||||||
ERAHS-KIT | (2) Come-A-Longs (2) Cables for height adjustment (Not for lifting) | ||||||
ERERAHS-STLO | STATIONARY LEG OPTION, set of 4 (factory installed) | ||||||
ERAHS-STLO-RF | STATIONARY LEG OPTION, set of 4 (field installed) | ||||||
ERGPTD-2 | 2,000 to 4,000 lbs. capacity / standard with 3 button hand control | ||||||
ERGPTD-4 | 6,000 to 8,000 lbs capacity / standard with 3 button hand control | ||||||
ERV-TRACK | 10 foot section of v-groove track |
